Calder’s Clouds Return to Capitol Hill, but Motion Must Wait

Alexander Calder’s four reconstructed “clouds” are hanging over their 51-foot steel “mountains” again in Washington’s Hart Senate Office Building, reuniting the two halves of Mountains and Clouds after 12 years. The $12 million refabrication substitutes carbon-fiber composite for the original aluminum, but motor-driven movement is not expected until later in 2026; no later source confirms whether balancing remains unfinished.




What Has Returned—and What Has Not

The physical reunion happened in stages. Roll Call reported on September 25 that workers were preparing the rebuilt forms and expected to hoist them that weekend. A Calder Foundation installation photograph published with The Hill’s October 1 report dates the installation to September 26. The foundation said then that the restoration was expected to be completed later in 2026.

What visitors can now see is a composition that once again reads vertically: five black steel mountain peaks rise from the atrium floor while four curving forms occupy the air above them. Calder conceived the two groups as one work, not as a free-standing sculpture with optional decoration. The Architect of the Capitol calls it his only composition combining a separate mobile and stabile.

The return is nevertheless visual before it is kinetic. Senator Chris Murphy told Roll Call that the clouds still had to be balanced and motorized, and that movement might not begin until after the November election. Smithsonian’s October 1 account put the possible start sometime in November. Neither timetable is a completion notice, so “restored” currently means rehung—not yet moving.

That distinction matters because the new clouds are not conserved pieces of the old mobile. The original forms were disassembled after they were judged unsafe; the suspended elements now in the atrium are a refabrication. The steel mountains, which remained in place throughout the 12-year interruption, are the surviving half of the original full-scale assembly.

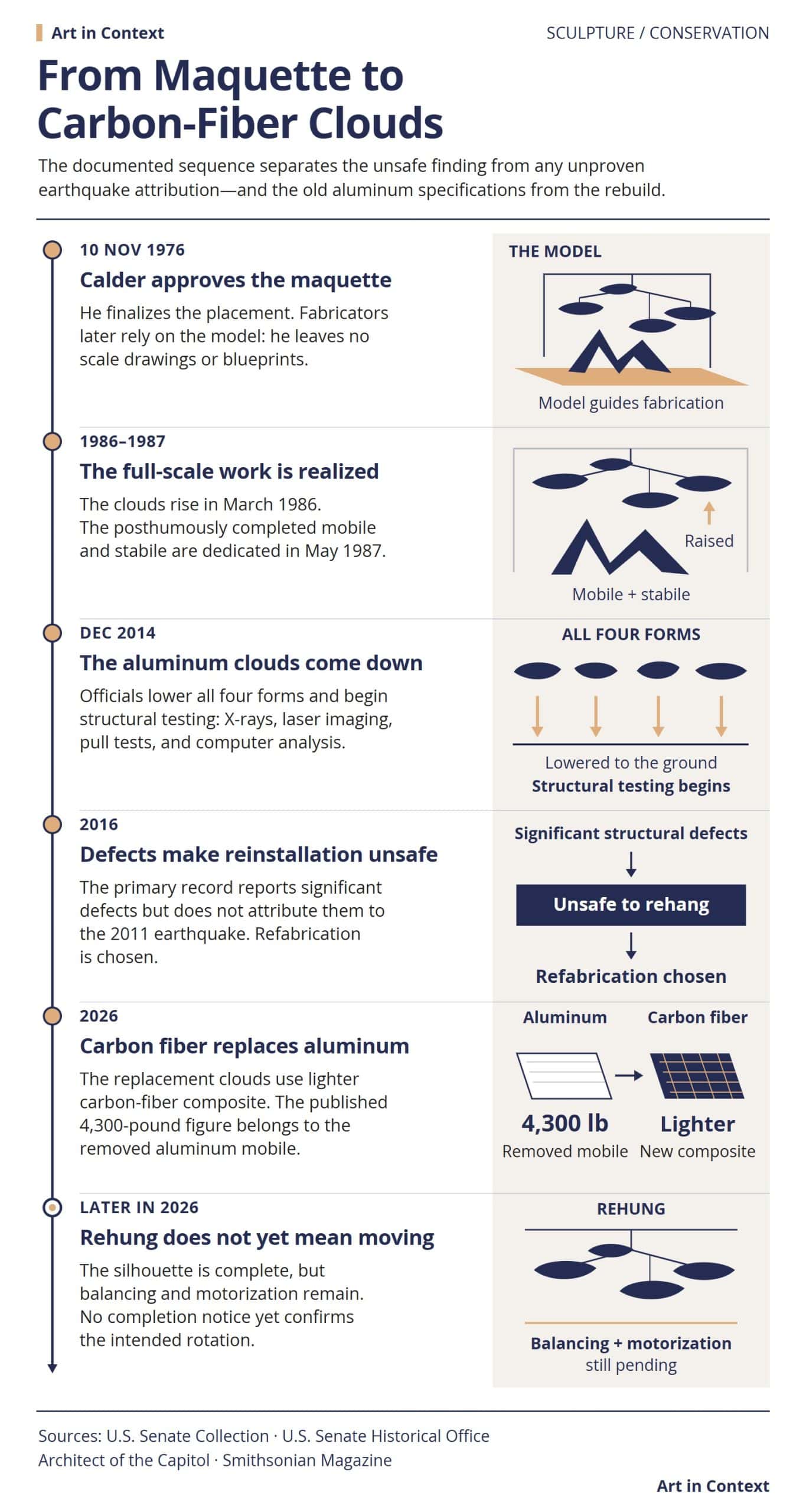

Infographic by Art in Context, based on U.S. Senate Collection, U.S. Senate Historical Office, Architect of the Capitol, Smithsonian Magazine.




From Aluminum Skins to Carbon-Fiber Clouds

The conservation sequence began well before the new material was chosen. A magnitude 5.8 earthquake struck the Washington region on August 23, 2011, and later accounts connect the safety concern to its aftermath. The Architect of the Capitol’s project record is more precise and more limited: the four clouds were lowered in December 2014, then examined by X-ray, 3-D laser imaging, pull tests and computer analysis that included seismic stresses.

That official record says the 2016 assessment found significant structural defects and deemed the clouds unsafe to reinstall. It does not say that the 2011 earthquake caused those defects. The chronology is therefore earthquake, concern, lowering, testing and an unsafe finding—not a proven chain in which the quake damaged the sculpture.

The original mobile had a honeycomb aluminum core covered by a thin aluminum skin. The largest cloud extended 42.5 feet and weighed about 2,000 pounds; all four together weighed 4,300 pounds. Those figures describe the removed construction, not automatically the replacement. Smithsonian reports that the $12 million privately funded reconstruction uses lighter sheets of carbon-fiber composite.

That material change solves an engineering problem while raising a documentary one. As of October 2, the public U.S. Senate collection record still gave the medium as “painted aluminum and steel,” and the AOC artwork page still said the clouds “will be” refabricated. The Senate medium remains accurate for the sculpture’s original fabrication, while the AOC’s statement that the clouds “will be” refabricated is outdated; neither page identifies the carbon-fiber material now overhead. The responsible institutions have not published revised dimensions and weights, so the old 4,300-pound total applies only to the aluminum mobile.

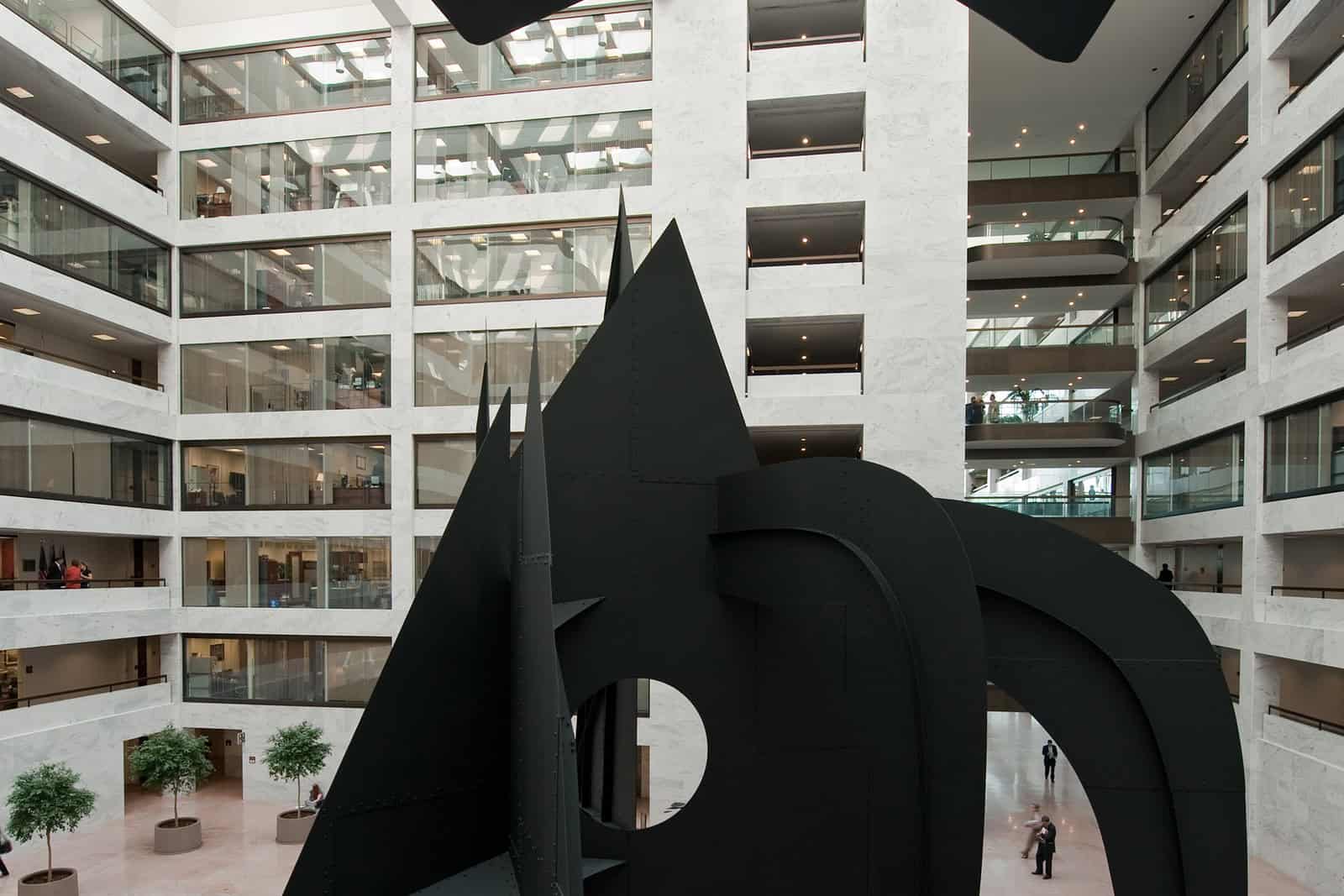

Mountains and Clouds before the mobile was lowered. Photograph by Architect of the Capitol, via Wikimedia Commons; public domain in the United States.




Why Motorization Is Part of the Artwork

Calder’s suspended forms established the mobile as a defining form of kinetic sculpture, but Mountains and Clouds was not designed to depend on air currents. The Senate collection record describes a computer-controlled motor intended to rotate the clouds in random patterns.

The historical record is less tidy about how long that system worked. Smithsonian says the clouds had been stationary since 1992. The Senate catalogue says only that the main bearing failed “shortly after” installation, and records a 2001 contract to redesign and manufacture a bearing system; it does not say how successfully or how long that intervention restored movement. Those statements are not necessarily incompatible, but they do not establish a continuous operating history.

Even while still, the sculpture changes as a viewer moves through the atrium and looks from different floors. Motorized rotation adds another variable: the relationship among the four clouds, the mountain peaks and the architecture changes over time without the viewer having to move. Rehanging restores the composition’s upper mass; working motion restores its intended behavior.




A Monument Realized After Calder’s Death

The restoration’s emphasis on original intent has unusual weight because the full-scale work was always posthumous. The Calder Foundation dates Mountains and Clouds to 1976/1986. Calder finalized the design and placement in Washington on November 10, 1976, adjusting the sheet-metal maquette with hand tools; he died in New York the next day. Fabricators later enlarged that approved model because he left no full-scale construction drawings.

Congress removed public funding in 1979. Former senator Nicholas Brady then organized a private campaign that raised $650,000. The clouds were installed before the 51-foot steel mountains, the full composition was completed in 1986, and the Senate dedicated it on May 5, 1987.

That history makes the present intervention more than routine maintenance within Alexander Calder’s wider career. The sculpture was first translated from the artist’s approved model after his death, and its mobile has now been translated again into a new structural material. The restoration uses new materials and engineering to bring the mobile closer to Calder’s archived intentions after the original execution diverged from them.

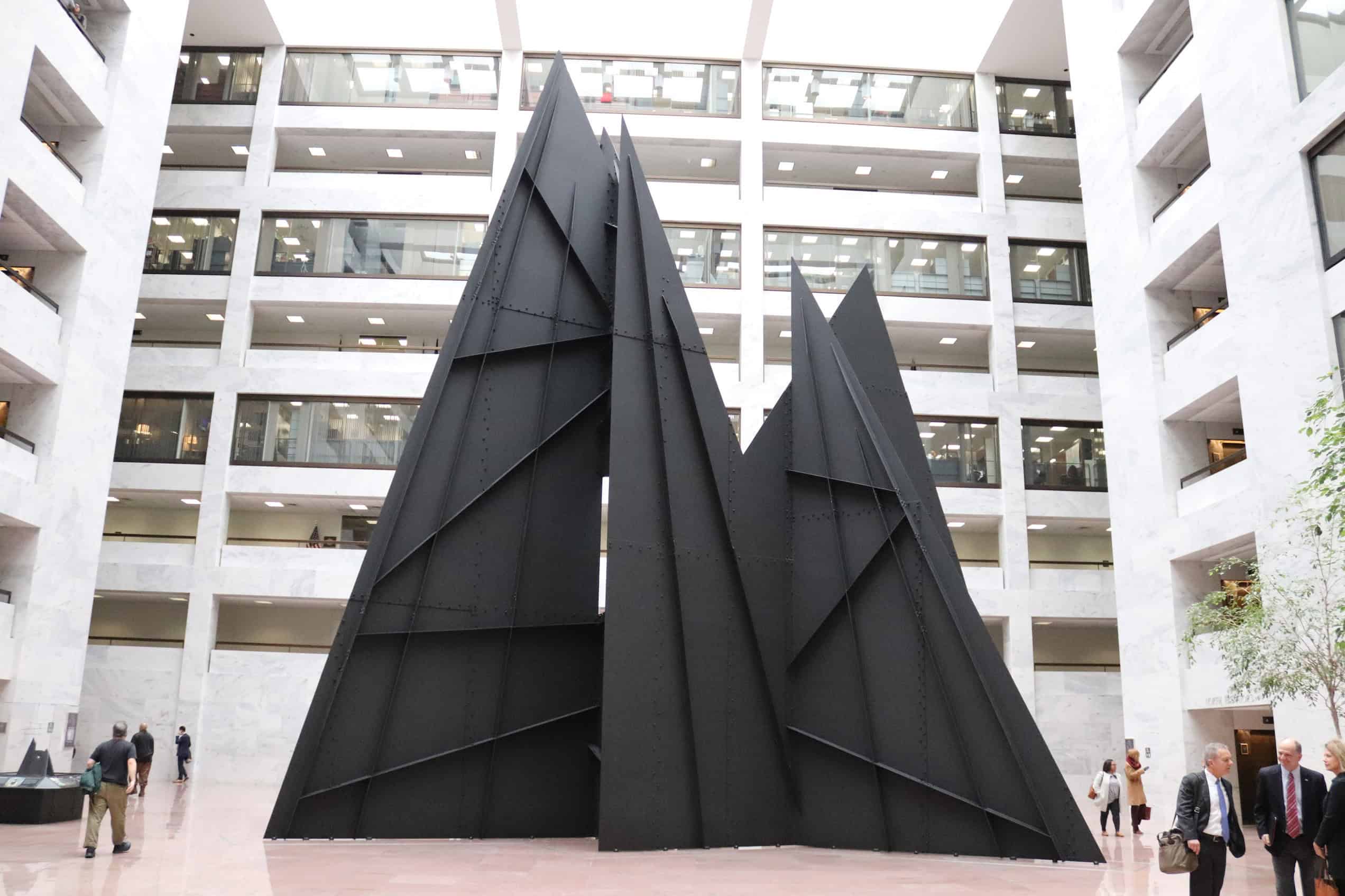

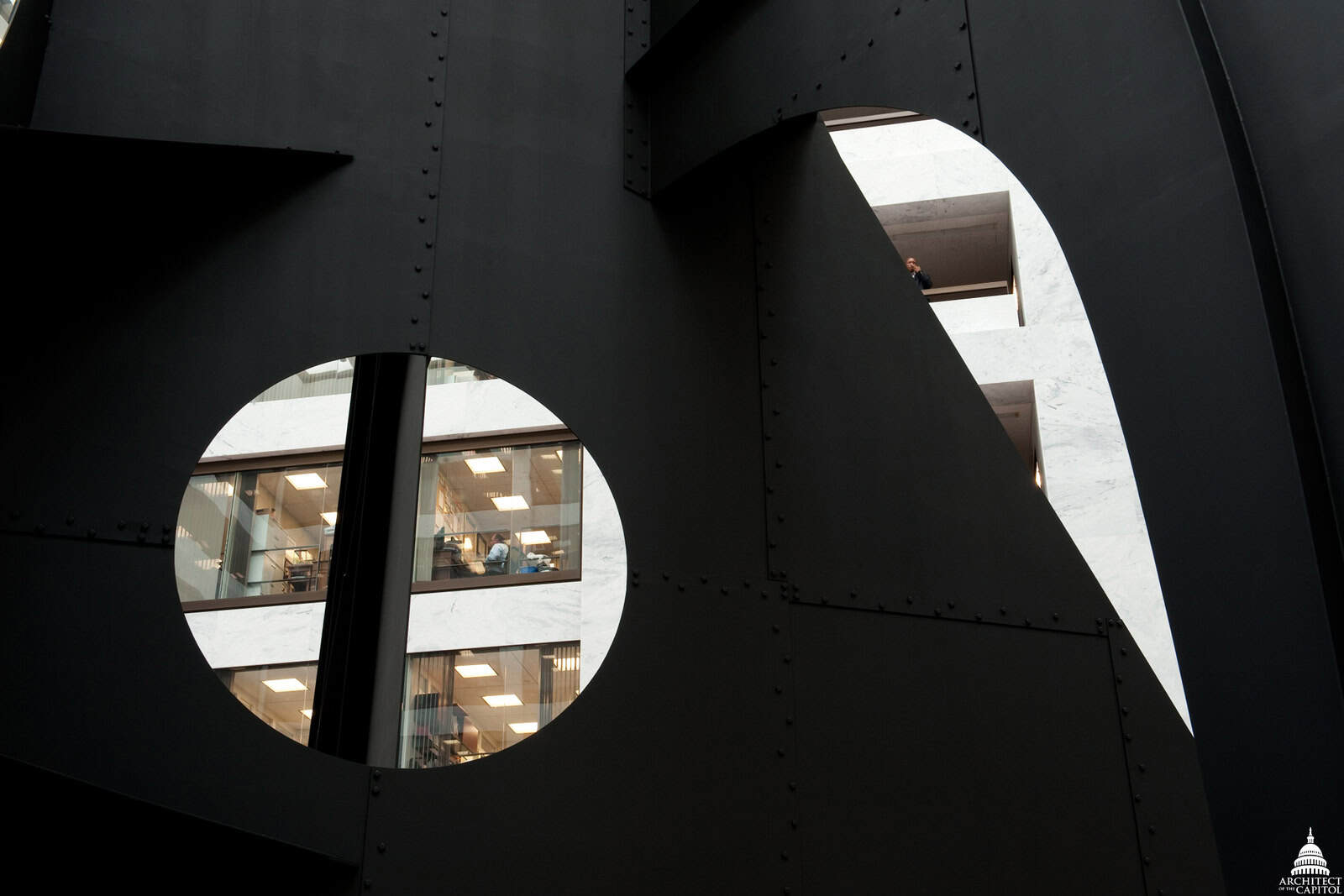

Detail of the steel mountains during the clouds’ absence. Photograph by Architect of the Capitol, via Wikimedia Commons; public domain in the United States.




Reunited, but Not Yet Finished

Four newly fabricated carbon-fiber clouds are back above Calder’s steel mountains after the original aluminum mobile was lowered in 2014 and rejected for reinstallation in 2016. The primary engineering record establishes significant defects, but not that the 2011 earthquake caused them.

The weight and aluminum medium repeated in official collection pages describe the earlier clouds and should not be carried over to the replacement without updated specifications. Mountains and Clouds has recovered its complete silhouette, but it will not recover the motor-driven behavior described in the Senate record until balancing and motorization are finished.
